Neles SwitchGuard SG9000 is an intelligent on-off valve controller. The device provides a maximum exhaust capacity of 700 Nm3/h, supports HART communication and loop power, and offers Ex d and Ex ia hazardous-area certifications. It features built-in status diagnostics and is designed for high-cycle, frequently switching on-off valves and process-critical on-off valves, enabling predictive maintenance and helping ensure valve availability and operational reliability in demanding processes.
Neles SwitchGuard SG9000 – Intelligent On-Off Valve Controller
Neles

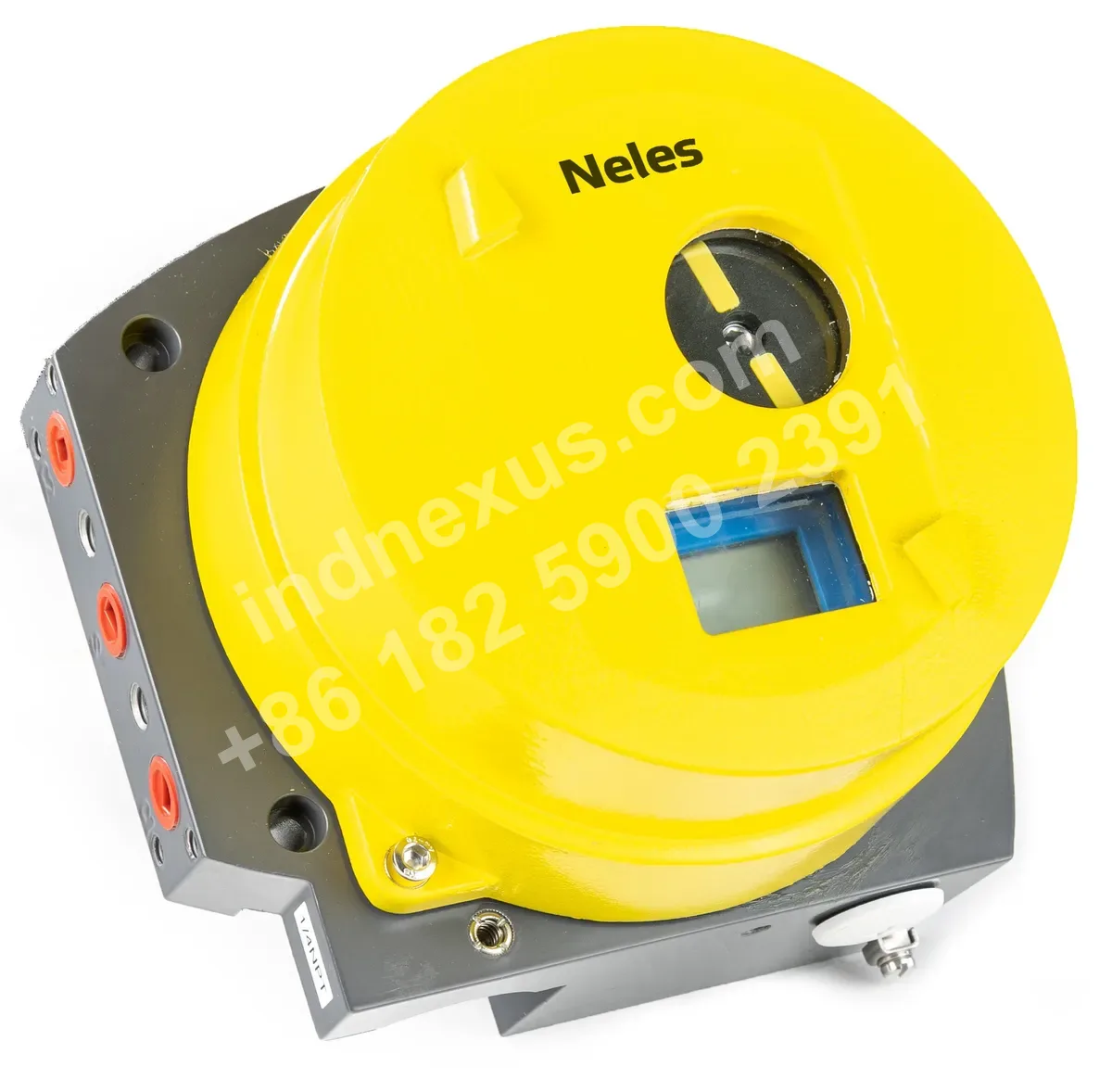

Neles SwitchGuard SG9000 Intelligent On-Off Valve Controller
Intelligent on-off valve controller for high-cycle switching applications with HART communication support.
- Category
- Valve Controllers
- Operating temperature range
- -40 to +85 °C
- Power supply
- Loop-powered, 4-20 mA; binary 24 VDC power supply available via a U/I converter
Specifications
- Power supply
- Loop-powered, 4-20 mA; binary 24 VDC power supply available via a U/I converter
- Communication protocol
- HART
- Operating temperature range
- -40 to +85 °C
- Body material
- Anodized aluminum or stainless steel
- Maximum exhaust capacity
- 700 Nm3/h (Cv 6.4)
- Hazardous-area certifications
- Ex d, Ex ia
Application scenarios
High-Cycle, Frequently Switching On-Off Valves
Used for controlling frequently actuated on-off valves. The product is designed for frequently switching and high-cycle valves, offering high pneumatic exhaust capacity and built-in diagnostics to support valve availability and operational reliability.
Diagnostics and Predictive Maintenance for Process-Critical On-Off Valves
Used for status diagnostics and predictive maintenance of process-critical on-off valves. The product features built-in diagnostics designed to help ensure on-off valve availability in demanding processes, improve operational reliability, and reduce maintenance costs.
Selection points
Integrated pneumatic control with high exhaust capacity
Maximum exhaust capacity of 700 Nm3/h (Cv 6.4), suitable for on-off valve actuators requiring high pneumatic flow and helping reduce the need for additional pneumatic components and tubing arrangements.
Loop power supply, HART communication and 24 VDC signal compatibility
Uses a 4-20 mA loop power supply and supports HART communication. A U/I converter can be used to provide binary 24 VDC power or adapt control signals.
Built-in diagnostics for high-cycle on-off valves
Built-in diagnostic functions are suitable for frequently actuated and high-cycle on-off valves, supporting operating condition monitoring and predictive maintenance.
Wide operating temperature range
The operating temperature range is -40 °C to +85 °C, allowing selection based on site temperature conditions.
Hazardous-area certifications and enclosure material options
Ex d and Ex ia hazardous-area certifications are available. The body can be specified in anodized aluminum or stainless steel to meet site explosion protection and material requirements.
Installation notes
Power supply and control signal matching
Confirm that the site uses a 4–20 mA loop power supply and connect HART communication according to the configuration. When binary 24 VDC power is used, connection must be made through a U/I converter.
Exhaust path and pneumatic capacity
The maximum exhaust capacity of SG9000 is 700 Nm3/h (Cv 6.4). During installation, ensure that the exhaust port and exhaust path are unobstructed and that the pneumatic capacity meets the actuator's operating requirements.
Hazardous-area certification configuration
Before installing in a hazardous area, verify that the Ex d or Ex ia certification corresponding to the specific SG9000 configuration is applicable to the site hazardous area, and configure installation fittings according to the applicable type of explosion protection.
Ambient temperature range
The ambient temperature at the installation location must remain within the range of -40 °C to +85 °C. Exceeding this range may affect the controller's reliable operation.
FAQ
What on-off valve operating conditions is Neles SwitchGuard SG9000 suitable for?
Neles SwitchGuard SG9000 is suitable for high-cycle on-off applications and process-critical on-off applications. It is designed for various valve actuators and combines high pneumatic capacity with on-off valve diagnostics to support reliable operation and predictive maintenance for frequently switching valves.
How does SG9000 enable valve status monitoring and predictive maintenance?
SG9000 has built-in on-off valve diagnostics that can be used to monitor valve condition during operation and support maintenance decisions. For high-cycle or critical process valves, the diagnostic function can contribute to improving valve availability and reducing maintenance costs.
What power supply and communication methods does Neles SwitchGuard SG9000 support?
SG9000 uses 4-20 mA loop power and supports HART communication. Binary 24 VDC power supply is also available through a U/I converter. During selection, confirm the specific configuration based on the site control system's signal type, power supply method, and communication requirements.
What is SG9000's pneumatic exhaust capacity, and what should be considered during selection?
SG9000 has a maximum exhaust capacity of 700 Nm3/h and a Cv of 6.4. When matching an actuator, comprehensively verify the valve actuator type, switching frequency, air supply conditions, and process requirements for operating speed to ensure suitability for the actual on-off application.
Can Neles SwitchGuard SG9000 be used in hazardous areas and low- or high-temperature environments?
SG9000 has an ambient temperature range of -40 °C to +85 °C and is available in versions with Ex d and Ex ia hazardous-area certifications. Suitability for the hazardous area and the specific configuration must be confirmed based on the actual model, installation area classification, and application conditions.
